Oculus

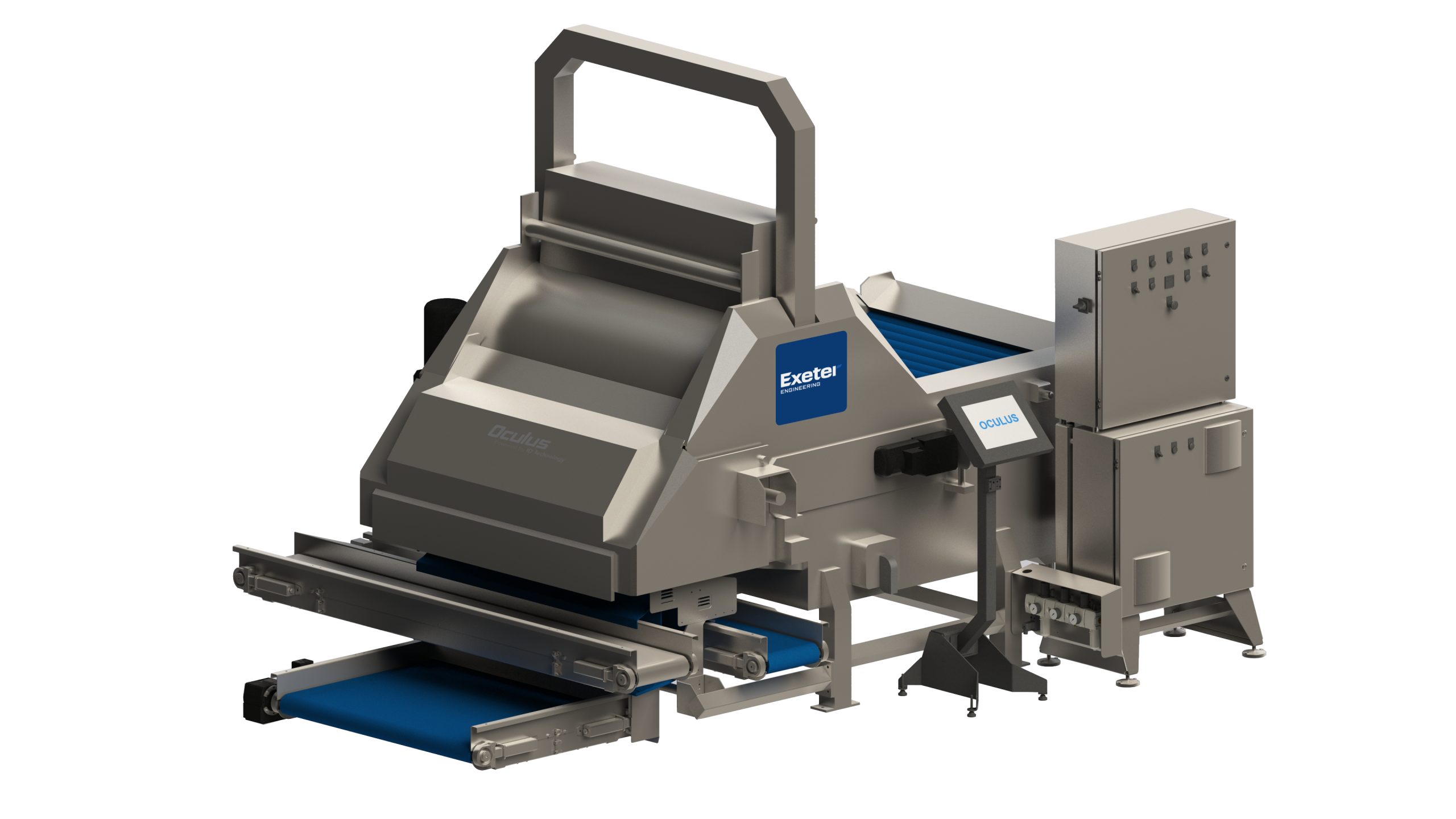

Rugged and compact, the Oculus compact optical sorter will maximize your return on investment while minimizing downtime

Gentler on your product… and your wallet. The Oculus is a compact, three-drop sorter with a unique roller design that yields superior sorting and grading results. Its rugged design and construction means more uptime and lower maintenance costs. And with ID Technology, your sorting and grading results will be exactly what you need them to be. As a compact optical sorter for fresh produce specializing in potatoes and potato varietals, Oculus perfectly combines precision imaging with AI-powered grading to deliver consistent performance in a small footprint.

PRODUCT FEATURES

Intelligent, compact footprint

Robust design

Outstanding reliability

Low operating cost

Low maintenance cost

Easy-to-use, with an intuitive UI and touch screen controls

Simple roller presentation system for superior imaging results

Process specification wash down compliant

Base models use an advanced combination of grading possibilities, with accuracy of 85-90%

Available with Exeter Engineering’s exclusive ID Technology, featuring AI-powered sorting, advanced imaging, and accuracy rates of over 95%

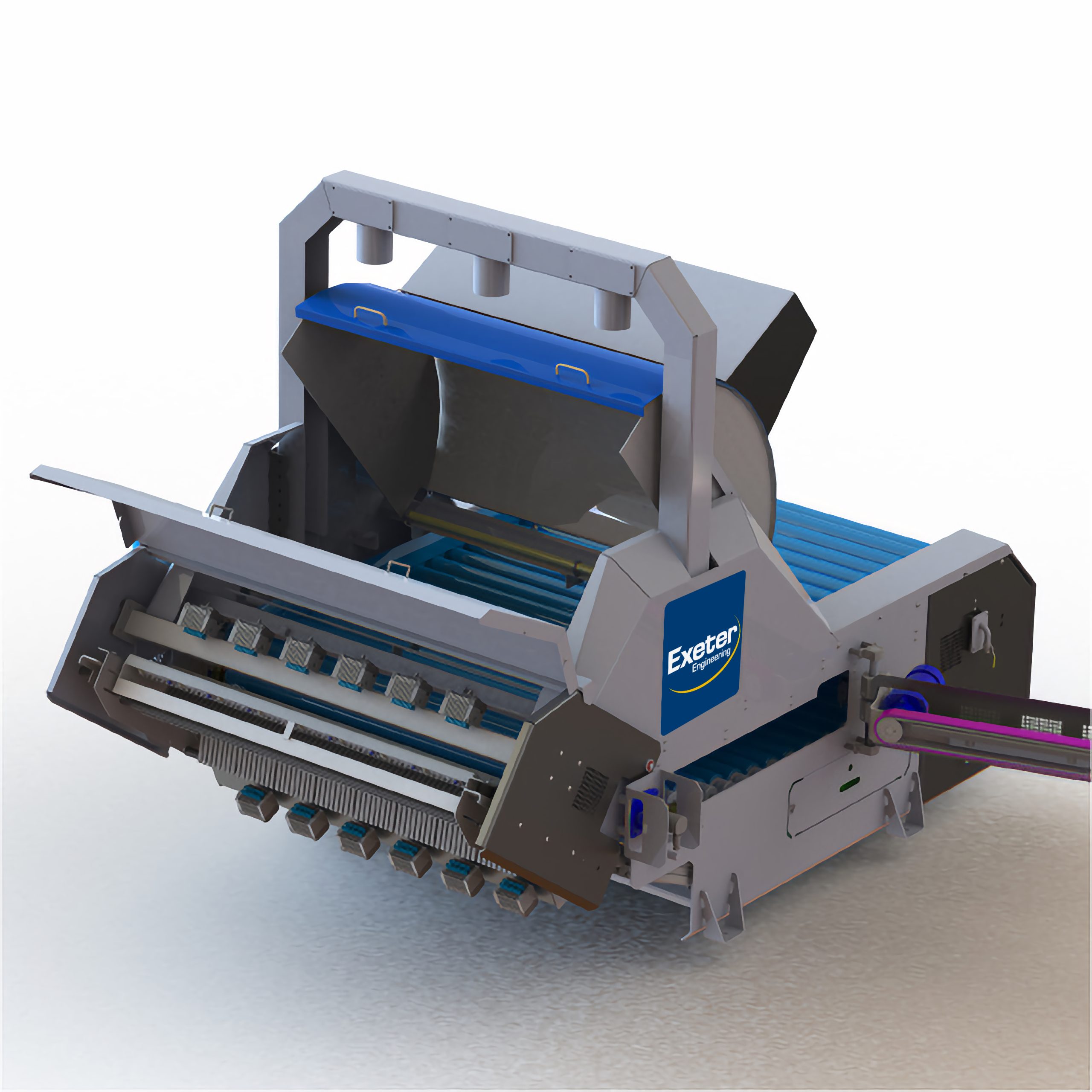

The Oculus sorter is a unique three-drop sorting solution, with a robust design that is easy and inexpensive to run and maintain…all in one of the smallest footprints in the industry. Oculus uses a unique roller design that allows easy singulation and yields superior grading results. Combined with Exeter Engineering’s exclusive ID Technology — our optical grading suite of cameras (capable of taking images in both visible and infra-red spectrums), custom-tuned LED lighting, and AI-powered decision-making algorithms — the rollers present each piece of product to the imaging system with a 360° view. Superior presentation means better imagery, and better imagery gives you consistent grading results unmatched in the fresh produce industry.

Oculus is also built to be gentle on both your product and your budget. Each Oculus structure made from 5/16” 304 stainless steel, with the conveyors made from 12 gauge 304 stainless steel. That rugged construction ensures that it will last season after season. And the gentle handling nature of the selection fingers also protects your product…while also lasting over twice as long as other types of sorters. In fact, maintenance costs overall are typically more than 70% less than competing machines. With a compact footprint and a wide range of configuration options, the Oculus has represents the highest quality grading results for the lowest overall cost.

Designed for high-speed grading of potatoes where flexibility and minimal space requirements are key considerations, the Oculus sorter sorts and grades red, white, yellow, russet and other potatoes with exceptional accuracy. Available in multiple roller sizes (3″, 4″, and 5″) and width configurations up to 2400, the Oculus can process up to 99,000 lbs per hour depending on roller type and crop size. Its innovative roller presentation ensures each potato is gently rotated for 360° imaging under high-definition, multi-spectral cameras, allowing the ID Technology system to detect defects like rot, green coloring, bruises, growth cracks or skinning. With easy-to-use touchscreen controls, AI-assisted grading, and durable stainless steel construction, the Oculus offers unmatched optical grading efficiency at a significantly lower operational cost—making it ideal for customers seeking consistency, quality and value.

4 Width Sizes

1000
1300
2000
2400

2 output options

2-way

1 run out conveyor (nominally process conveyor) and good product over the end.

3-way

2 run out conveyor (nominally process conveyor and second’s conveyor) and good product over the end.

3 roller diameter sizes and product size range (relating the size of potato that the machine is designed to sort)

3” roller

0.8” – 2.7” Diameter potatoes

4” roller

1.0” – 3.3” Diameter potatoes

5” roller

2.0” – 4.3” Diameter potatoes

Capacity (lbs/hr)

3” roller

  • 1000 (33,000)
  • 1300 (41,000)
  • 2000 (66,000)
  • 2400 (80,000)

4” roller

  • 1000 (39,000)
  • 1300 (50,000)
  • 2000 (80,000)
  • 2400 (94,000)

5” roller

  • 1000 (44,000)
  • 1300 (65,000)
  • 2000 (83,000)
  • 2400 (99,000)

Potato products Oculus

Reds
Whites
Yellows
Russets
Small potatoes

Grading features

Artificial Intelligence
(AI)-powered results
Green
Rot
Shape
Bruise
Air crack
Growth crack
Size
Worm hole
Cut
Silver scurf
Skinning
Scab

Supported Produce Types

Potato

Unwashed Potato

Oculus

Images & Videos

Oculus

Case Studies

Watermelon Producer – High-Volume Washing & Sorting System

READ CASE STUDY

Central California Potato Grower – Fully Automated Packing Line

READ CASE STUDY

Produce Packer – High-Capacity Sweet Potato Processing Line

READ CASE STUDY

California Grower – Bell Pepper Packing Line Upgrade

READ CASE STUDY

Five Crowns Marketing – honeydews and mixed melons

READ CASE STUDY

Oculus

Compact precision with the Oculus potato sorting machine

The Oculus sorter offers high-accuracy grading for small to mid-sized potatoes with a space-saving footprint. Built with AI-powered vision and durable stainless construction, Oculus minimizes maintenance and maximizes performance—ideal for operations needing consistent results in compact layouts. Contact us to see how the Oculus can optimize your sort.
